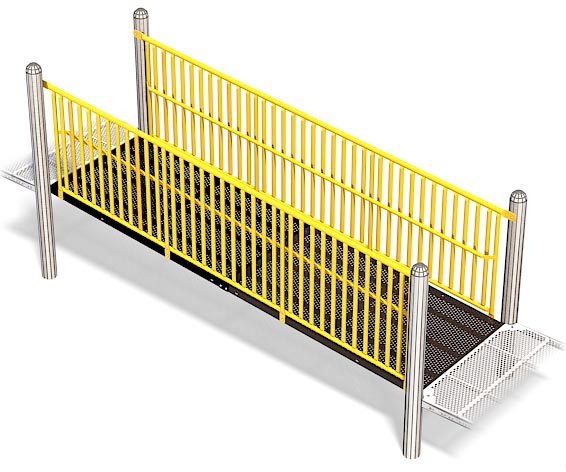

An accessible wheelchair ramp with a 1ft rise between two decks. Includes barrier rails so the ramp can be used at higher heights.

Age: 2-12

Plastisol Wheelchair ramp is a mechanical assembly of string guard, left and right barrier, decking, and support rib. String guard is 0.75” (19mm) anti-skid marine-grade polymer. Left and right barrier are welded assemblies of 1.315” (33mm) O.D. x 12 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 1.029” (26mm) O.D. x 14 gauge (2mm) Allied Flo-Coat® galvanized steel tube, 0.25” x 4” (6mm x 102mm) zinc-plated hot-rolled mild flat steel, and 0.5625” (14mm) O.D. hot-rolled steel round bar . Decking is a formed assembly of 12 gauge top sheet steel. Support rib is a formed assembly of 12 gauge to sheet steel. Deck is coated with non-skid high-density polyethylene. Barriers are powder-coat painted.
