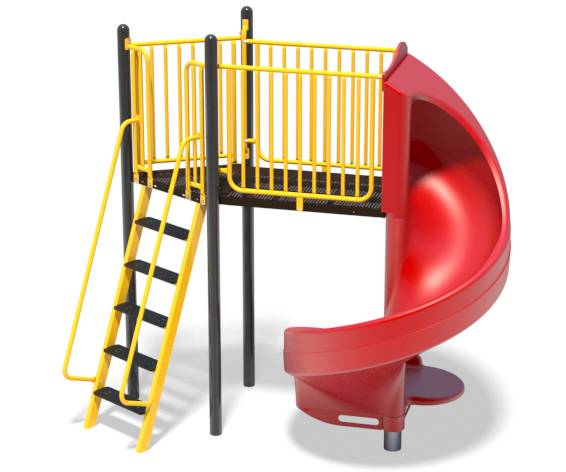

Spiral Slide and Ladder

$0.01

Model No. B301298

Independent Poly Spiral Slide is a mechanical assembly of slide, ladder, safety railing, handrail and support post. Slide is one-piece, double wall, rotationally-moulded mediumdensity polyethylene with an average wall thickness of 0.3125” (8mm). Slide has no seams or exposed hardware. Slide bed is minimum 16” (406mm) wide. Ladder is a welded assembly of 1.5” x 3” (38mm x 76mm) rectangular x 11 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 10 gauge (3mm) satin-coated steel sheet, 14 gauge (2mm) checker-plated steel sheet, and 0.25” x 1.5” (6mm x 38mm) zinc-plated hot-rolled mild flat steel. Safety railings are a welded assembly of 1.315” (33mm) O.D. x 12 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 1.029” (26mm) O.D. x 14 gauge (2mm) Allied Flo-Coat® galvanized steel tube, 0.1875” x 1.75” (5mm x 44mm) zinc-plated hot-rolled mild flat steel connecting lugs, and 0.25” x 2” (6mm x 51mm) zinc-plated hot-rolled mild flat steel connecting lugs. Handrails are 1.315” (33mm) O.D. x 12 gauge (3mm) Allied Flo-Coat® galvanized steel tube. Support post is 5” (76mm) O.D. x 0.125” (3mm) hollow structural steel tube. Ladder, safety railing and handrails are powder-coat painted.

Quick Highlights:

Ages: 5-12
Use Zone: 18’ x 23’ (5.5m x 7.0m)

Includes 6’ (1.8m) spiral slide, deck, barrier rails, ladder and handrails.
