Age: 2 to 5 Years:  Maximum Height of Overhead 1.5 m (59.06 in); 5 to 12 Years:  Maximum Height of Overhead 2.1 m (82.68 in)

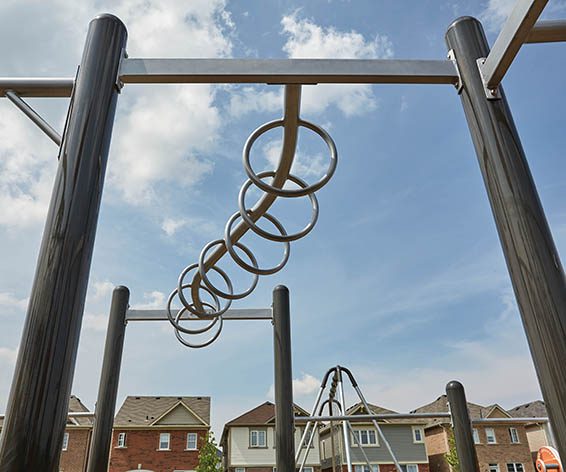

Snaky Trapeze Challenge is a mechanical assembly of ring beam, rings, support bar, and brackets. Ring beam is a welded assembly of 2.375” (60mm) O.D. x 10 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 0.1875” x 1.25” (5mm x 32mm) zinc-plated hot-rolled mild flat steel, and 0.25” x 2” (6mm x 51mm) zinc-plated hot-rolled mild flat steel. Rings are a welded assembly of 1.029” (26mm) O.D. x 14 gauge (2mm) Allied Flo-Coat® galvanized steel tube, 1” (25mm) schedule 40 black steel pipe, and 1.03” O.D. x 0.51” I.D. (26mm x 13mm) nylatron bushing. Rings are suspended from a lubricated bearing with mechanical hardware. Support bar is a welded assembly of 1.5” x 3” (38mm x 76mm) rectangular x 11 gauge (3mm) Allied Flo-Coat® galvanized steel tube, and 0.1875” x 1.75” (5mm x 44mm) zinc-plated hot-rolled mild flat steel. Brackets are 10 gauge (3mm) satin-coated steel sheet. Ring beam, rings, support bar, and brackets are powder-coat painted.

Deck Heights: 0, 1ft (0, 0.3m) for 2 to 5 years; 0, 1, 2ft (0, 0.3, 0.61m) for 5 to 12 years
