Age: 2-12

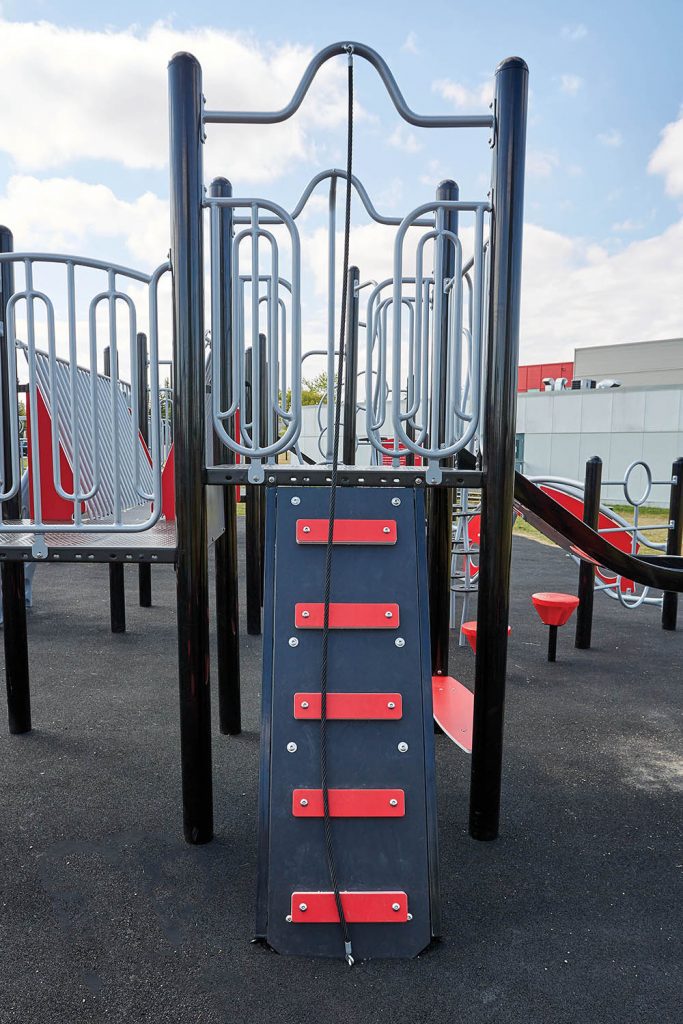

Rappel Wall is a mechanical assembly of wall, ground legs, safety hoop and cable. Wall is a mechanical assembly of steel coated high density polyethyline non-skid and frame. Frame is a welded assembly of 1.5” x 1.5” (38mm x 38mm) rectangular x 14 gauge (2mm) Allied Flo-Coat® galvanized steel tube, 10 gauge (3mm) satin-coated steel sheet and 0.25” x 1.5” (6mm x 38mm) zinc-plated hot-rolled mild flat steel. Ground legs are 1.315” (33mm) O.D. x 12 gauge (3mm) Allied Flo-Coat® galvanized steel tube. Safety hoop is a welded assembly of 1.315” (33mm) O.D. x 12 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 1.029” (26mm) O.D. x 14 gauge (2mm) Allied Flo-Coat® galvanized steel tube, 0.1875” x 1.75” (5mm x 44mm) zinc-plated hot-rolled mild flat steel and 0.375” (10mm) O.D. hot rolled steel bar. Cable is 0.625” (16mm) steel strand fibre-core polycable with polyfix standard ferrule. Frame, ground legs, and safety hoop are powder-coat painted.

Deck Heights: 3, 4, 5, 6, 7ft (0.9, 1.2, 1.5, 1.8, 2.1m)
