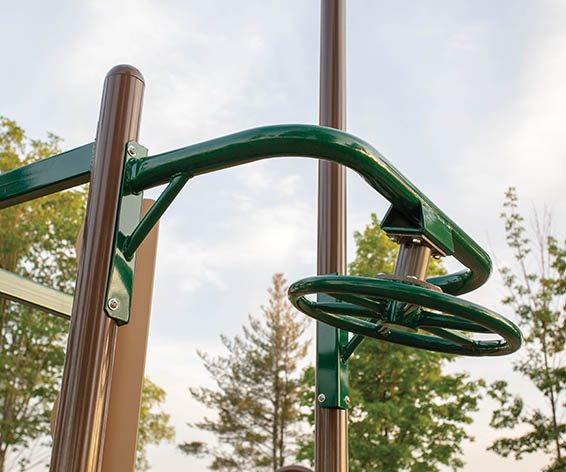

Overhead Rotator

$0.01

Age: 2 to 5 Years:  Maximum Height of Overhead 1.5 m (59.06 in); 5 to 12 Years:  Maximum Height of Overhead 2.1 m (82.68 in)

Overhead Rotator is a mechanical assembly of frame, rotating assembly and wheel. Frame is a welded assembly of 2.375” (60mm) O.D. x 10 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 1.029” (26mm) O.D. x 14 gauge (2mm) Allied Flo-Coat® galvanized steel tube, and 10 gauge (3mm) satin-coated steel sheet. The rotating assembly is a mechanical assembly of the bearings, welded/threaded column shaft, bearing washers, and bearing housing. Rotating assembly is a welded assembly of 2.875” (73mm) O.D. x 8 gauge (4mm) Allied Flo-Coat® galvanized steel tube and 0.25” x 3” (16mm x 76mm) zinc-plated hot-rolled mild flat steel. Wheel is a welded assembly of 1.315” (33mm) O.D. x 12 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 3” (76mm) O.D. x 0.120” (3mm) hollow structural steel tube, 1.029” (26mm) O.D. x 14 gauge (2mm) Allied Flo-Coat® galvanized steel tube, 0.25” (6mm) x 3” (76mm) hot-rolled mild steel flat bar, 0.75” (19mm) O.D. hot-rolled steel bar, and 0.25” (6mm) hot-rolled steel flat. Entire assembly is powder-coat painted.

Deck Height: 0, 1ft (0, 0.3m) for 2 to 5 years; 0, 1, 2ft (0, 0.3, 0.61m) for 5 to 12 years
