Age: 5-12

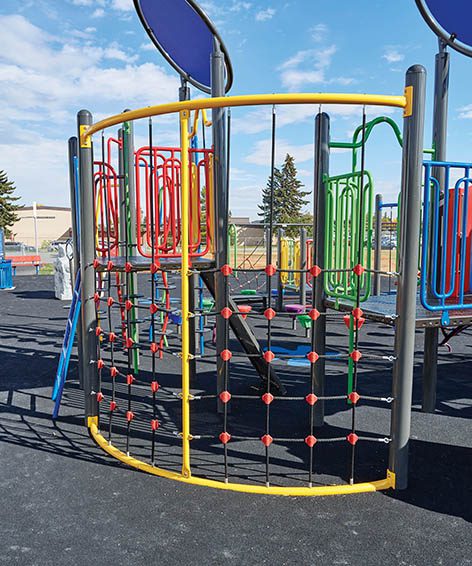

Lunar Climbing Wall is a mechanical assembly of wall net, climber frame, wall vertical, ground leg, and optional safety railing. Wall net is 0.625” (16mm) O.D. steel strand fibre-core polycable with polyfix x-joint and polyfix standard ferrule. Climber frame is a mechanical assembly of upper frame, lower frame, and vertical support. Upper frame is a welded assembly of 2.375” (60mm) O.D. x 10 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 0.25” x 2” (6mm x 51mm) zinc-plated hot-rolled mild flat steel, and 0.25” x 3.5” (6mm x 89mm) zinc-plated hot-rolled mild flat steel. Lower frame is a welded assembly of 2.375” (60mm) O.D. x 10 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 0.25” x 2” (6mm x 51mm) zinc-plated hot-rolled mild flat steel, and 0.25” x 3.5” (6mm x 89mm) zinc-plated hot-rolled mild flat steel. Vertical support is a welded assembly of 1.66” (42mm) x 11 gauge (3mm) Allied Flo-Coat® galvanized steel tube and 0.375” (10mm) O.D. hot-rolled steel bar. Ground leg is 1.315” (33mm) O.D. x 12 gauge (3mm) Allied Flo-Coat® galvanized steel tube. Optional safety railing is a welded assembly of 1.315” (33mm) O.D. x 12 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 1.029” (26mm) O.D. x 14 gauge (2mm) Allied Flo-Coat® galvanized steel tube, and 0.1875” x 1.75” (5mm x 44mm) zinc-plated hot-rolled mild flat steel. Climber frame, ground leg, and safety railing are powder-coat painted.

Deck Heights: 5ft (1.5m)
