Catwalk Bridge

$0.01

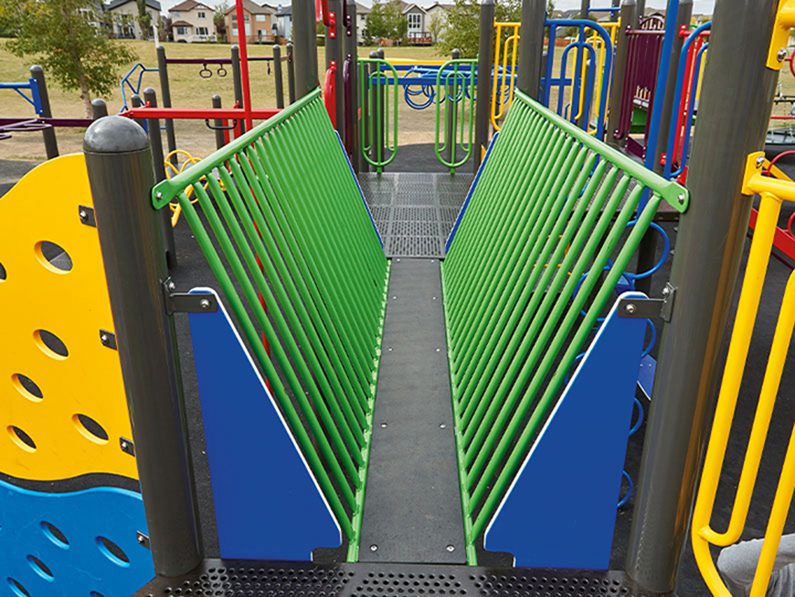

Our Catwalk Bridge traverses two decks at the same height with a narrow bridge crossing.

Age: 2-12

Catwalk Bridge is a mechanical assembly of handrail, decking, brackets and handrail plastic. Handrail is a welded assembly of 1.315” (33mm) O.D. x 12 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 1.315” (33mm) 1018 carbon steel tube insert, 1.029” (26mm) O.D. x 14 gauge (2mm) Allied Flo-Coat® galvanized steel tube, and 0.1875” x 1.75” (5mm x 44mm) zinc-plated hot-rolled mild flat steel. Decking is 0.75” (19mm) anti-skid marine-grade polymer. Brackets are 0.1875” x 1.75” (5mm x 44mm) zinc-plated hot-rolled mild flat steel. Handrail plastic is 0.75” (19mm) bi-color sheet polyethylene.
