Age: 2-12

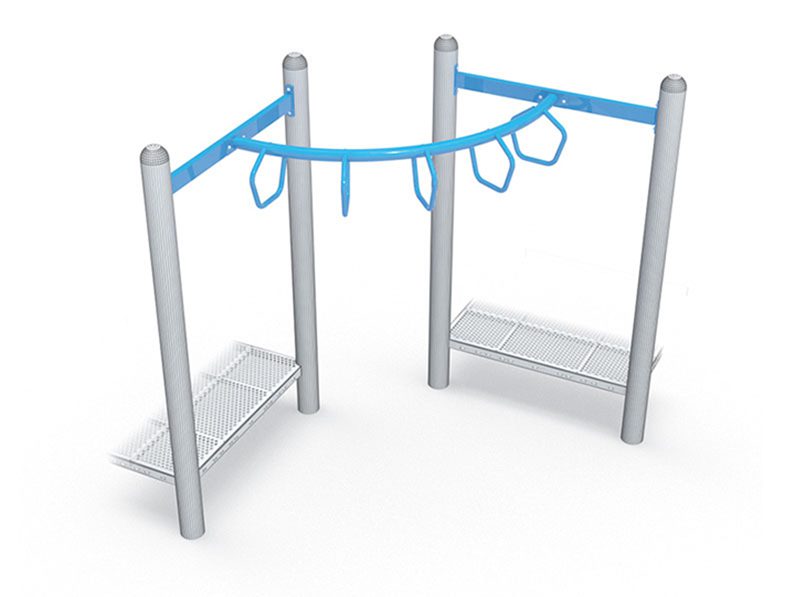

Vertical poles are a welded assembly of 1.315” (33mm) O.D. x 12 gauge (3mm) Allied Flo-Coat® galvanized steel tube, 0.375” (10mm) O.D. hot-rolled steel bar, and 10 gauge (3mm) satin-coated steel sheet. Overhead support bar is a welded assembly of 1.5” (38mm) x 3” (76mm) x 11 gauge (3mm) Allied Flo-Coat® galvanized steel rectangular tube, and 0.1875” x 1.75” (5mm x 44mm) zinc-plated hot-rolled mild flat steel. Connectors are 10 gauge (3mm) satin-coated steel sheet. Chain is 4/0 hot-dipped galvanized straight-link coil chain. Overhead beam is a welded assembly of 2.375” (60mm) O.D. x 10 gauge (3mm) Allied Flo-Coat® galvanized steel tube and 10 gauge (3mm) satin-coated steel sheet. Vertical poles, overhead support bar, connectors, and overhead beam are powder-coat painted.

Deck Heights: 12in (305mm) to 24in (610mm)
